Roof Mount Angle Brackets
When to use our Roof Mount Bracket
Roof mount brackets are for mounting your Raceway Mounted Signs, Lit shape Signs or Lit Sign Cabinets signs to a sloped roof. Our brackets are field adjustable to whatever your roof angle, from 3/12 to 12/12 pitch. Simply install the adjustment screw at whatever pitch makes your sign in the correct vertical position. Our Brackets are designed to be used as multiples. They are not designed to be used individually.
Care should be taken to seal roof penetrations. Frame is only as strong as its mounting surface. We recommend through bolting through roof with wood or steel backing plate. Installer is required to determine if the roof can support the sign installation. Customer is responsible to seal the roof around the bracket to prevent leaking.
Choosing the correct Size Roof Mount Bracket
On each type of sign that is mounted using the Roof mount Brackets, it is important to leave room under your sign for snow, leaves and water to be under your sign and not cause damage to the sign. This will require at least 4" to 8" of space below the sign, above the roof. Our Brackets are not designed for the sign to be mounted more than 16" form the bottom of the sign to the roof.
Contact us if you need help determining the size of the Roof Mount Sign Bracket.
Raceway Mounted Signs

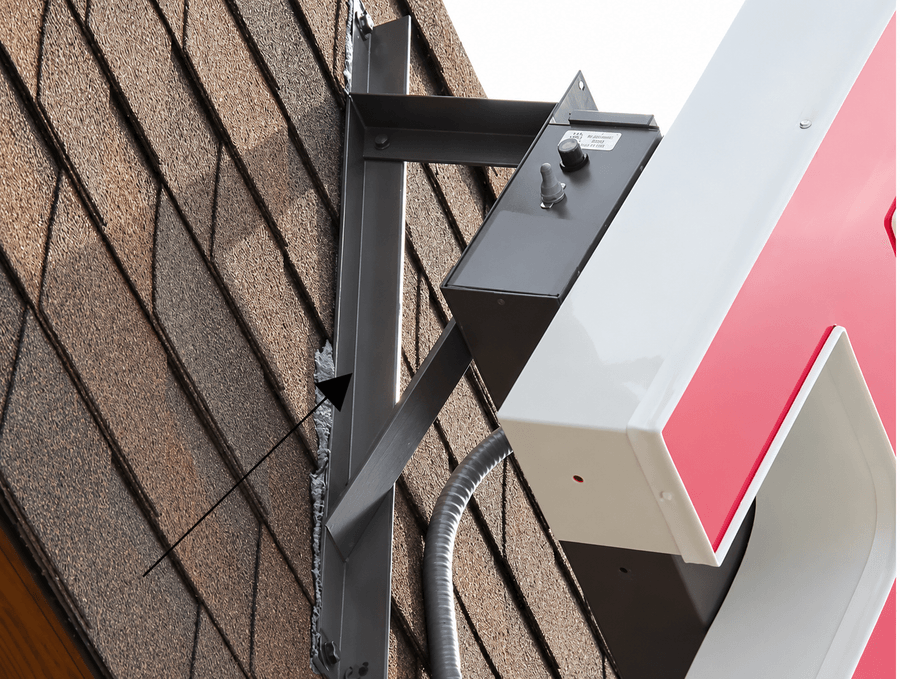

Raceway Mounted signs the bracket will attach to the top and bottom of the raceway. This will in most cases be below the top of the letters or logos. For Roof Mounted Raceway signs you will need a minimum of two brackets, for a sign under 6' in length. We suggest an additional Sign Bracket every 3 feet of raceway length.Lit Shape Signs
Bracket will attach to the top and bottom of the Lit Shape. When the Lit Shape Sign is ordered together with the Roof Mounting Brackets, the sign will include mounting points for the brackets when you receive it. Each Lit Shape Sign will need minimum of two brackets, for a sign under 6' in width. We suggest an additional Sign Bracket every 3 feet of sign width.Lit Sign Cabinets
Bracket will attach to the top and bottom of the cabinet. When the Lit Sign Cabinet is ordered together with the Roof Mounting Brackets, the sign will include mounting points when you receive it. Each Lit Cabinet Sign will need minimum of two brackets, for a sign under 6' in length. We suggest an additional Sign Bracket every 3 feet of sign width.
- 18" $105 Each
- 24" $122 Each
- 30" $139 Each
- 36" $155 Each
- 42" $175 Each
- 48" $197 Each
