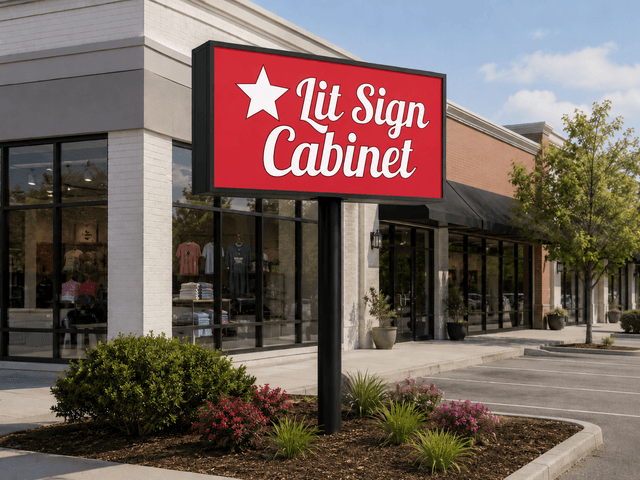

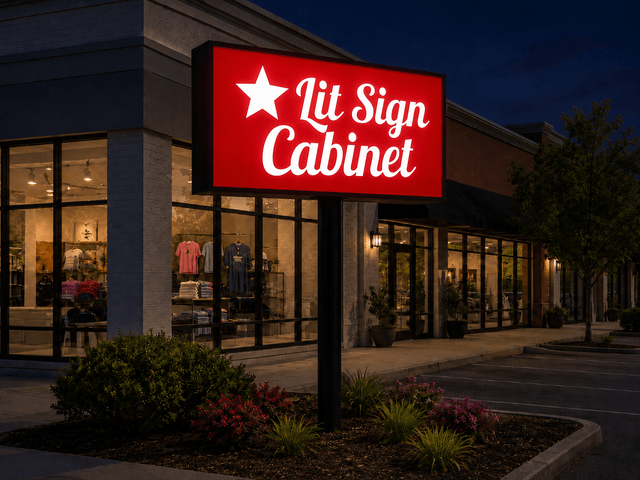

Lit Squared Cabinet - Double Faced

Double Face Rectangular Illuminated Cabinet Sign is lit through both faces with double High Output LEDs. The Sign will be built as a Rectangle with 4 Straight Sides. Faces of the sign are held with a metal retainer which makes changing the sign faces easy. The LED power systems are built into the sign for a simple installation onto a pole or structure. Built with all aluminum construction to be strong, rigid and lightweight. This product is sometimes referred to as a Double faced Box sign or a Light Box Sign.

UL LabelAll our signs carry the UL label and are tested and inspected by a UL certified inspector.
Lit Squared Cabinet - Double Faced
Double Face LED Lit Sign Cabinet Illumination & Power

Double Face LED Lit Sign Cabinet Illumination & Power

Weatherproof, high output LEDs are pre-installed inside the Sign Cabinet. A safe 12 volt system is 100% complete and ready to install. Our Exclusive 3 way power switch provides On, Off, and On with Sun Control. When Sun Control is selected, your sign will automatically turn on at night and off during the day.
Double Face Lit Sign Cabinet Construction

Double Face Lit Sign Cabinet Construction

Constructed entirely of corrosion resistant aluminum for durability. Completely weatherproof for many years of exterior service. Sign will have a UL label and inspection during construction. In addition, we also conduct a 32 point quality control inspection during manufacturing. Cabinets are built of heavier metal than our Lit Shape Signs or channel letters.
Lit Cabinet Sign Faces

Lit Cabinet Sign Faces

Our unique printing process creates durable and highly fade resistant sign face graphics. At night our face colors are bright and vibrant, due to our special inks and printing process. All our Full Color Printed faces have a scratch and UV protecting clear-coat. We use Polycarbonate Plastic (bullet proof glass) for our sign faces to eliminate the chance of breakage in shipping and installation.
Lit Sign Metal Face Retainers

Lit Sign Metal Face Retainers

The face retaining trim is designed to hold the face in place but also allow easy removal of the face, if you would like to change the graphics in the future. Retain Trim will be painted the same color as the face and if 1.75" wide.
Double Face Lit Cabinet Mounting (Center Pole Mount)

Double Face Lit Cabinet Mounting (Center Pole Mount)

The most popular installation method is our standard Center Pole Mount. The cabinet would be constructed to have a 12" long x 5" round steel tube sticking out of the bottom of the sign. The round tube is designed to fit into a schedule 40 steel pipe that SignMonkey or customer could provide. If you have a existing pole or pipe structure, we can provide custom mounting flanges to fit your structure. This is of course if your existing structure is structurally suitable. You can contact a sign expert here at SignMonkey, we can help you understand your options.

Optional Items

Alternative Mounting Methods

For other mounting methods, you can Contact us to inform us of your installation plans, and we can work on a solution that best suits your mounting challenge.


Easy Installation

Our products are designed to be installed by people with limited electrical experience. UL labeled and National Electric Code Approved


Charles Coooper

"I did it all myself and i saved more than 50% than it would have cost from my local sign company. Seriously!!"

Austin

"We honestly saved around $3000 dollars by using sign monkey and installing ourselves!"

Shipping

Example UPS Box Shipment

UPS Shipment

All products small enough to fit into a box are shipped via UPS. We pack multiple items in each box and pack them to arrive in perfect condition. Products are shipped ready to install. You simply take the boxes to the installation site, carefully remove them from the packing and install. There is no assembly required.

Example Shipping Crate

Truck Freight Shipping

When a product is too big to ship UPS, we will ship your item via truck freight. Your product will be ready to install directly from the crate. You simply take the crate to the installation location, unpack it, and install it onto the wall. Our crate is designed for your item to arrive in perfect condition.
